These numbers are the maximums and do fluctuate depending on catering, AV or other space factors needed for your event. Please check with your event coordinator to better understand your event capacity.

ROOM	SQ. FT	CEILING HEIGHT	DIMENSIONS	THEATER	CLASS ROOM	BANQUET
CONCORD I	4,753	20'	82' X 49'	450	100	250
CONCORD II	1,968	20'	41'X 48'	250	50	120
CONCORD III	1,968	20'	41'X 48'	250	50	120
TOTAL	8,689	20'	82' X 96'	950	200	550
CHENIN BLANC I	616	12'	22' X 30'	50	24	30
CHENIN BLANC II	616	12'	22'X 30'	50	24	30
TOTAL	1,232	12'	44'X 30'	100	48	60
CHAMPANEL I	775	12'	23' X 33'	45	24	30
CHAMPANEL II	493	12'	23'X 21'	40	24	30
TOTAL	1,268	12'	23' X 54'	85	48	60
CHANCELLOR I	409	12'	17'X 19'	30	16	20
CHANCELLOR II	409	12'	17' X 19'	30	16	20
TOTAL	818	12'	17'X 38'	60	32	40
FRONT LOBBY	1,020	*	34' X 30'	*	*	*
BACK LOBBY	1,000	*	25' X 40'	*	*	*

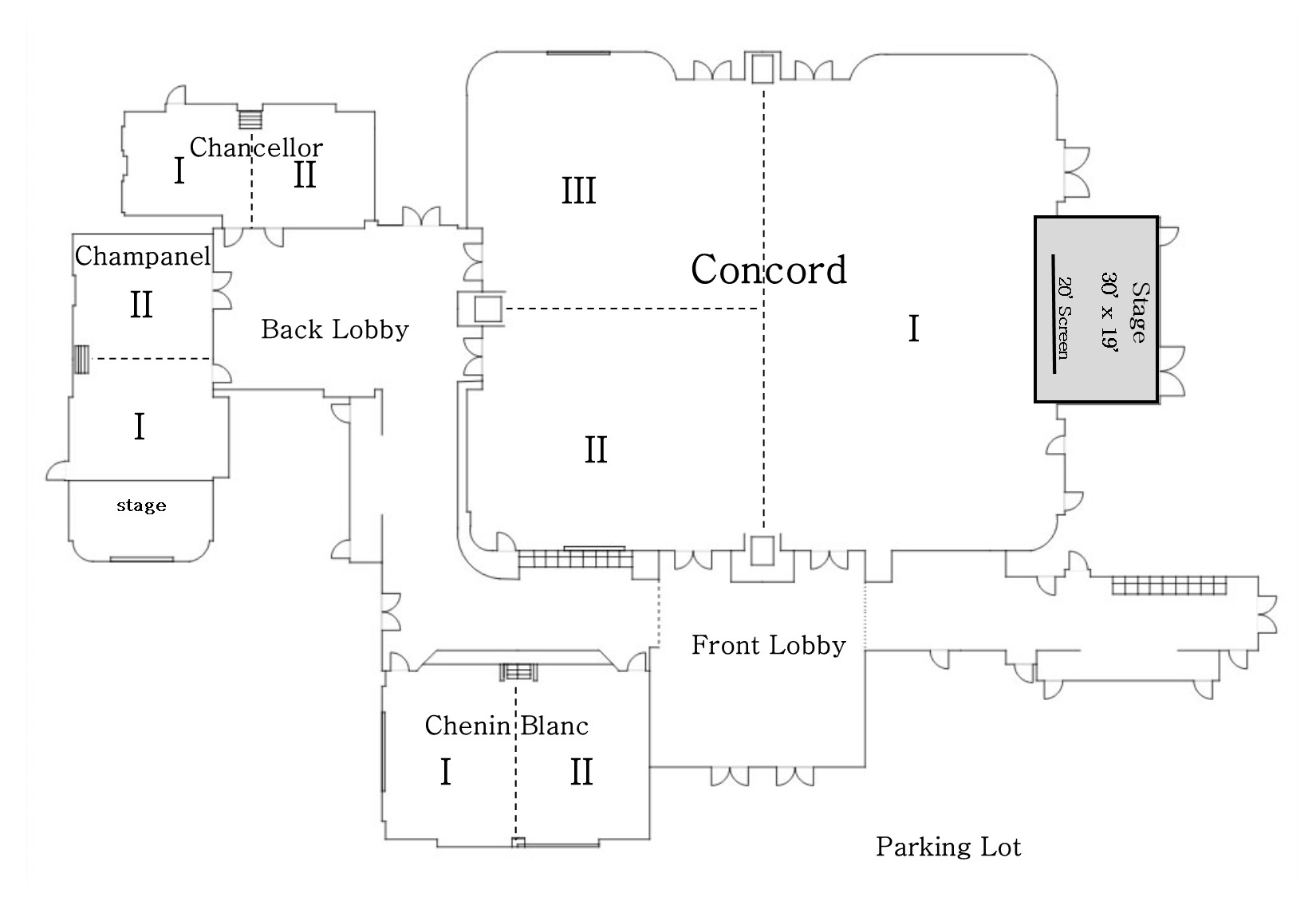

Grapevine Convention Center Floor Diagram

You can all download a copy of our building diagram.
